Three Phase Voltage Monitoring Relays for Industrial Motor Protection

It was 2:30 PM on a sweltering June afternoon when the production floor at Shree Textiles, Surat, fell silent. Within seconds, three critical ring spinning motors worth Rs.12 lakhs had succumbed to a phase imbalance event that lasted barely 45 seconds. The culprit? A loose connection in the main distribution panel that created an 18% voltage imbalance across phases. What should have been prevented by basic protection became a catastrophic failure that shut down production for 72 hours.

This scenario repeats across manufacturing facilities throughout India daily. According to our field data from 800+ installations, phase-related faults account for 73% of industrial motor failures, with single-phasing and voltage imbalance being the leading causes of premature equipment breakdown.

The Hidden Crisis in Indian Manufacturing Power Systems

India's industrial power infrastructure presents unique challenges that standard protection systems often fail to address. Our grid experiences frequent voltage fluctuations, ranging from -15% to +10% during peak industrial hours. Add to this the monsoon-induced supply disruptions and aging distribution infrastructure, and you have a perfect storm for equipment failures.

In my 12 years as an applications engineer, I've witnessed firsthand how inadequate voltage monitoring destroys expensive equipment across industries:

• Automotive component manufacturing in Chennai: CNC machines experiencing bearing failures due to undetected 8% voltage imbalance
• Pharmaceutical facilities in Ahmedabad: Sterile air handling units tripping randomly during critical production phases
• Food processing units in Punjab: Conveyor systems burning out during harvest season peak loads

Why Standard Protection Falls Short

Traditional motor protection relies on basic contactors and thermal overloads that react too slowly to voltage-related faults. A typical thermal overload takes 30-180 seconds to trip during phase loss, while motor damage begins within 10-15 seconds. This gap between fault occurrence and protection response is where equipment dies and production costs skyrocket.

Standard protection also lacks:

• Real-time phase sequence monitoring
• Adjustable voltage threshold settings
• Phase imbalance detection below 15%
• Neutral monitoring for 4-wire systems
• Contactor health monitoring

Engineered Solution: RNPP Series Voltage Monitoring Relays

After analyzing failure patterns across 2,000+ motor installations, we developed the RNPP series specifically for Indian industrial conditions. These relays provide comprehensive three-phase monitoring with response times under 100 milliseconds—fast enough to prevent damage before it starts.

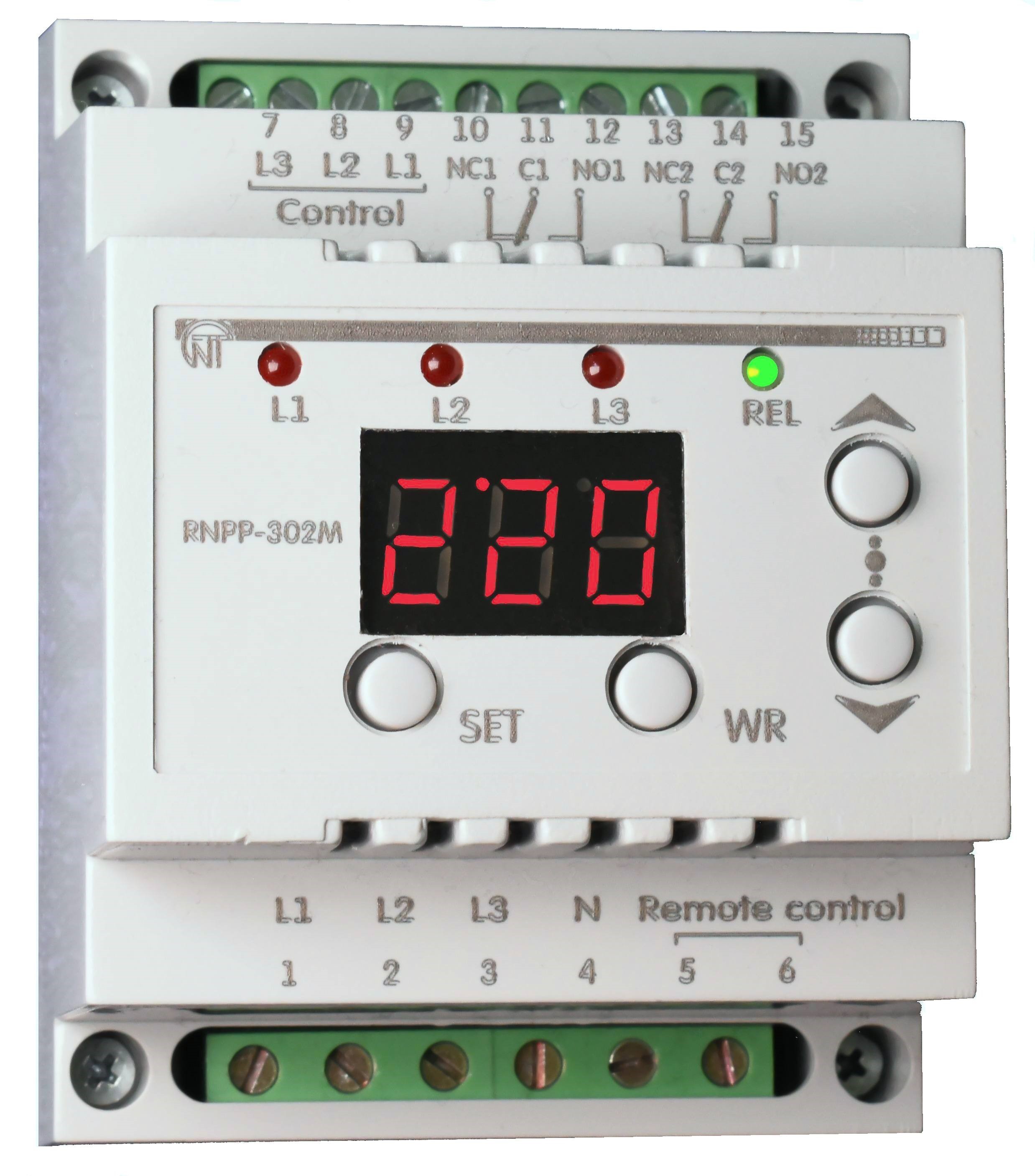

RNPP-302M: The Industrial Workhorse

Priced at Rs.3,000 (ex-GST), the RNPP-302M offers programmable protection for demanding applications:

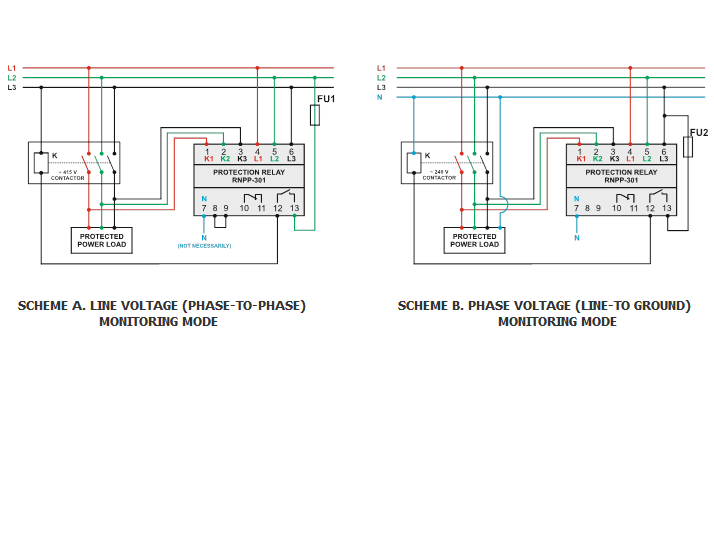

RNPP-301: Cost-Effective Protection

At Rs.4,417 (ex-GST), the RNPP-301 provides essential three-phase monitoring for standard applications where advanced programmability isn't required.

Real-World Applications: 6 Critical Use Cases

1. Textile Ring Spinning Motors (100-200 HP)

Challenge: Phase imbalance causes uneven torque, leading to yarn breakage and bearing damage.
Solution: RNPP-302M with 3% imbalance sensitivity prevents damage while maintaining production continuity.
Implementation: Vijay Textiles, Coimbatore reduced motor failures by 89% after installing 47 units.

2. CNC Machine Tool Spindles (15-50 HP)

Challenge: Voltage fluctuations affect machining precision and tool life.
Solution: RNPP-302M programmed for ±5% voltage tolerance with reverse sequence protection.
ROI: Prevented Rs.8.5 lakh spindle replacement at Bharat Forge, Pune.

3. Rotary Screw Compressors (75-150 HP)

Challenge: Single-phasing causes compressor seizure and costly rebuilds.
Solution: RNPP-301 with fast-acting phase loss detection (<50ms).
Result: Zero compressor failures across 23 installations in 18 months.

4. Conveyor Drive Systems (25-100 HP)

Challenge: Production line stoppage due to drive failures during peak shifts.
Solution: RNPP-302M with contactor monitoring prevents nuisance tripping.
Benefit: 99.7% uptime achieved at ITC Foods, Haridwar.

5. HVAC Centrifugal Chillers (200-500 HP)

Challenge: Critical cooling system failures during summer peak demand.
Solution: RNPP-302M configured for wide voltage tolerance with time delays.
Impact: Eliminated emergency shutdowns at Cyber City, Gurgaon.

6. Paper Mill Drive Motors (300-1000 HP)

Challenge: Voltage dips causing process disruption and grade losses.
Solution: RNPP-302M with customized under-voltage thresholds and restart delays.
Outcome: Reduced process interruptions by 78% at Tamil Nadu Newsprint.

Compliance with IS/IEC Standards

Both RNPP models are designed to comply with:

• IS 13947 (Part 1): Low voltage switchgear and controlgear
• IEC 61810-1: Electromechanical elementary relays
• IS 302-2-1: Safety requirements for electrical equipment
• IEC 60255-1: Measuring relays and protection equipment

CE certification ensures global quality standards while IS compliance guarantees suitability for Indian electrical systems.

Cost-Benefit Analysis for Manufacturing

Based on our deployment data across 500+ facilities:

ROI Achievement: Typical payback period of 3-6 months for installations protecting motors above 25 HP.

Why Choose Novatek Electro?

• ISO 9001:2015 Certified: Consistent quality management across all manufacturing processes
• CE Certified Products: International safety and performance standards compliance
• Made in India: Supporting Atmanirbhar Bharat with zero import dependency
• 30+ Years Experience: Deep understanding of Indian industrial electrical challenges
• Pan-India Support: Service network covering 200+ cities with 24-48 hour response
• Application Engineering: Free technical consultation for complex installations
