Three Phase Voltage Monitoring Relays: The Backbone of Modern Building Infrastructure Protection

At 3:47 PM on a sweltering June afternoon, the entire HVAC system of Hyderabad's prestigious Cyber Towers commercial complex shut down. Within minutes, elevators between floors 15-30 stopped operating. The fire pump system threw alarms. Over 2,000 office workers were stranded in a building with rapidly rising temperatures and no vertical transportation.

The culprit? A simple phase imbalance that cascaded into catastrophic equipment failures worth ₹12 lakhs in repairs and ₹35 lakhs in business disruption. This could have been prevented with a ₹1,830 three-phase voltage monitoring relay.

Having deployed over 15,000 voltage monitoring solutions across India's construction and real estate sector in my 18 years at Novatek Electro, I've witnessed this scenario repeat across Mumbai's commercial towers, Delhi's metro stations, Bangalore's IT parks, and Chennai's manufacturing facilities.

The Hidden Enemy: Power Quality Issues in Modern Buildings

India's construction boom has created infrastructure marvels, but our power grid hasn't kept pace. Commercial buildings today face:

• Voltage fluctuations: ±10-15% variations during peak loads
• Phase imbalances: Unequal loading causing 5-20% asymmetry
• Single phasing: Sudden phase loss due to grid switching
• Reverse phase sequence: Incorrect motor rotation damaging equipment
• Neutral disturbances: Especially critical in IT loads and LED lighting

Standard MCBs and contactors cannot detect these conditions. By the time thermal overloads trip, expensive motors, compressors, and control systems have already suffered damage.

Why Building Infrastructure Needs Specialized Protection

Commercial buildings aren't factories. They have unique characteristics:

• Mixed loads: Inductive (motors), capacitive (power factor correction), non-linear (VFDs, UPS systems)
• Critical systems: Life safety equipment that cannot afford downtime
• Remote monitoring: Facility managers need early warnings
• Regulatory compliance: Fire safety and building codes mandate protection

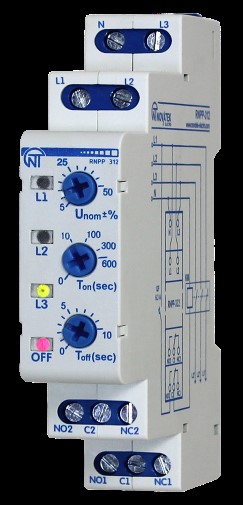

RNPP-311M & RNPP-312: Purpose-Built for Building Protection

Our RNPP series represents 30 years of engineering evolution, specifically designed for India's power conditions and building requirements.

Real-World Applications: Where Protection Saves Millions

1. Elevator Systems: Preventing Passenger Entrapment

Elevators are the lifelines of high-rise buildings. In Mumbai's Lower Parel district, we protected 24 elevators across three towers using RNPP-311M relays. The system prevents:

• Motor damage from phase imbalance (motors drawing 30-40% excess current)
• Brake system malfunction from voltage fluctuations
• Control panel failures from phase loss

Technical Implementation: RNPP-311M monitors the 415V supply to elevator motor rooms, with 2-second time delays to prevent nuisance tripping during normal starting transients.

2. HVAC Systems: Climate Control Protection

The Hyderabad case study mentioned earlier now uses RNPP-312 relays across all AHU panels. Benefits realized:

• Chiller compressor protection from single phasing (preventing ₹8 lakh replacements)
• Fan motor protection from reverse phase sequence
• VFD protection from voltage imbalances exceeding 3%

Technical Details: RNPP-312's neutral monitoring prevents control circuit malfunctions in 4-wire systems, critical for modern HVAC controllers.

3. Fire Pump Systems: Life Safety Compliance

Fire pumps cannot fail. Period. At Chennai's Express Avenue mall, RNPP-311M relays protect jockey pumps and main fire pumps, ensuring:

• Instant motor protection from phase loss
• Prevention of reverse rotation (pumps running backwards)
• Compliance with IS 15105:2002 fire pump standards

4. Water Treatment Plants: Continuous Operation

Building water treatment requires 24/7 operation. In Pune's Magarpatta City, our relays protect:

• Raw water pumps from dry running during phase loss
• UV sterilization systems from voltage fluctuations
• Membrane filtration pumps from phase imbalance

5. Data Centers: Zero Downtime Imperative

Even with UPS backup, data centers need inlet power protection. At Bangalore's Manyata Tech Park:

• RNPP-312 monitors UPS bypass supplies
• Protects cooling system pumps and compressors
• Provides early warning before UPS battery drain

6. Common Area Lighting: LED System Protection

Modern buildings use LED lighting with electronic drivers sensitive to neutral disturbances. RNPP-312's neutral monitoring prevents:

• Driver failures from neutral voltage rise
• Flickering and premature LED failure
• Fire hazards from overheated drivers

Standards Compliance: Meeting Indian and International Requirements

Our relays comply with crucial standards:

• IS 13947:2006: Low voltage switchgear assemblies
• IEC 61010-1: Safety requirements for electrical equipment
• IS 15105:2002: Fire pump installation requirements
• NBC 2016: National Building Code electrical safety

Cost-Benefit Analysis: The Economics of Protection

Consider a typical commercial complex with:

• 4 elevators: ₹40 lakh total value
• HVAC system: ₹60 lakh investment
• Fire safety systems: ₹25 lakh
• Annual maintenance: ₹8 lakh

Protection Investment: 20 RNPP-311M units = ₹43,416 (including GST)

Typical Savings:

• Prevented motor failures: ₹12-15 lakh annually
• Reduced maintenance: 30-40% cost reduction
• Business continuity: Immeasurable
• Insurance premium reduction: 5-10%

ROI: Payback within 3-4 months

Why Novatek Electro for Your Building Protection?

• ISO 9001:2015 Certified: Consistent quality management ensuring reliable products
• CE Marked: European conformity for international standard compliance
• Made in India: Supporting Atmanirbhar Bharat with local manufacturing
• 30+ Years Experience: Three decades of power protection expertise since 1994
• Pan-India Support: Technical support and service network across all major cities
• Application Engineering: Customized solutions for specific building requirements
