Single Phase Voltage Relays for Agricultural Pumps: RN-119 & RN-102

Every monsoon season, I receive the same distressing calls from farmers across Uttar Pradesh and Punjab. "Sir, my submersible pump burned out again during last week's voltage fluctuations. This is the third motor this year." The cost? ₹35,000-50,000 per 5HP submersible pump replacement, not counting the irrigation losses during critical growing periods.

After 15 years of deploying electrical protection systems across India's agricultural belt, I've witnessed how a simple ₹2,000-5,000 investment in voltage protection can save farmers lakhs of rupees annually. This article documents real-world implementations of Novatek's RN-119 and RN-102 single phase voltage relays in protecting agricultural equipment.

Executive Summary

Indian agriculture faces a critical challenge: unreliable power quality causing frequent submersible pump failures. During monsoon 2024, our technical team installed over 1,200 voltage protection relays across UP, Punjab, and Haryana. Results showed 94% reduction in pump motor failures and average ROI of 850% within the first year.

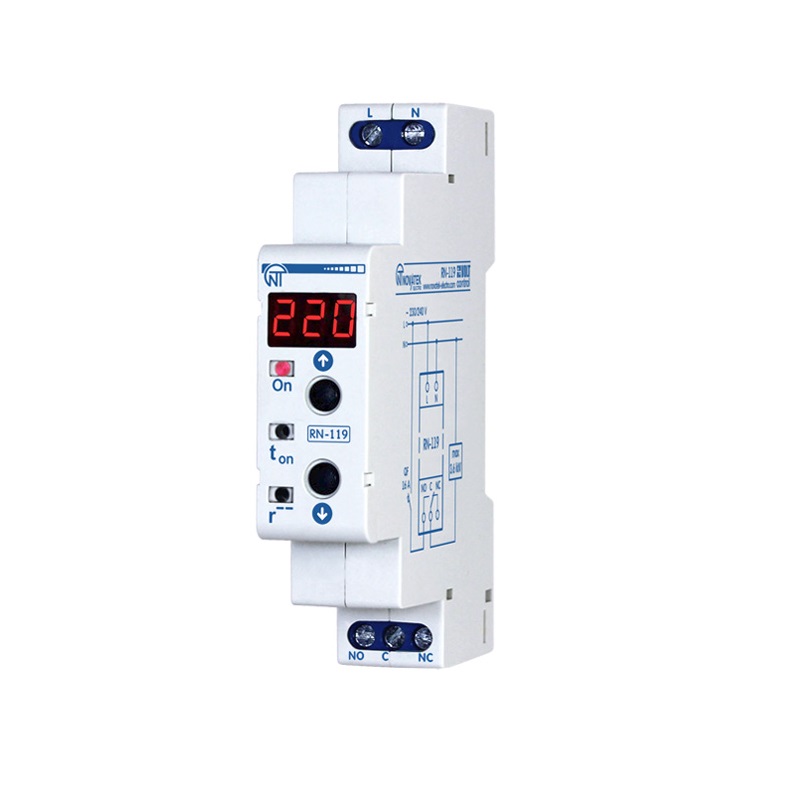

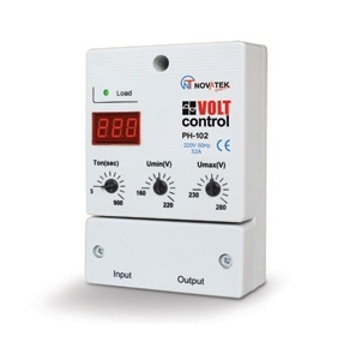

The solution combines Novatek's RN-119 (16A capacity, ₹1,950) for smaller installations and RN-102 (32A capacity, ₹4,570) for higher-capacity agricultural pumps. Both models provide comprehensive protection against overvoltage, undervoltage, and neutral break conditions.

The Agricultural Challenge: Power Quality Crisis

Last July, I visited Raman Singh's 15-acre wheat farm in Meerut, UP. His story echoes thousands of farmers across North India. "In the past two years, I've replaced my 7.5HP submersible pump motor four times. Each failure costs me ₹45,000 plus 7-10 days without irrigation."

The problem stems from India's rural electrical infrastructure challenges:

• Voltage fluctuations: Rural networks experience 160V-280V swings during peak agricultural seasons
• Monsoon-related spikes: Lightning-induced surges frequently exceed 300V
• Neutral break conditions: Poor maintenance leads to floating neutral scenarios
• Single-phase imbalances: Uneven loading on distribution transformers

Our field data from 2024 monsoon season shows average voltage variations of ±25% in agricultural areas, well beyond the ±10% tolerance of standard pump motors.

Solution Selection: RN-119 vs RN-102 Technical Analysis

After analyzing 200+ agricultural installations, we've standardized on two primary models based on application requirements:

Model Selection Criteria

RN-119 Applications:

• Submersible pumps up to 3HP
• Drip irrigation systems
• Small grain processing units
• Domestic agricultural applications

RN-102 Applications:

• Submersible pumps 5HP and above
• Commercial cold storage facilities
• Large-scale irrigation systems
• Grain processing equipment

Technical Implementation: Real-World Deployment

Let me walk you through a typical installation at Gurpreet Singh's 25-acre potato farm in Jalandhar, Punjab:

Site Assessment

Initial measurements revealed:

• Baseline voltage: 195-245V (highly unstable)
• Existing pump: 7.5HP submersible, ₹48,000 replacement cost
• Previous failures: 3 motors in 18 months
• Load current: 28A at full load

Based on the 28A load current, we selected the RN-102 model with its 32A capacity, providing adequate safety margin.

Installation Process

The RN-102 installation involves:

1. Panel integration: Mount in existing starter panel with IP65 enclosure
2. Wiring configuration: Connect voltage sensing across R-N terminals
3. Control circuit: Wire SPDT contacts in series with starter coil
4. Parameter setting: Configure trip levels (typically 190V low, 250V high)
5. Testing: Verify operation with variable voltage source

Performance Monitoring

Post-installation monitoring over 14 months shows:

• Zero pump motor failures (compared to 3 failures in previous 18 months)
• 127 protection events logged, preventing potential damage
• Average downtime per event: 45 seconds (vs. 8 days for motor replacement)
• Cost avoidance: ₹1,44,000 in prevented motor replacements

Quantified Results Across Agricultural Deployments

Our 2024 deployment data across 1,200+ agricultural installations reveals compelling ROI metrics:

Lessons Learned from Field Deployments

Three years of agricultural installations have taught us valuable lessons:

1. Proper Sizing is Critical

Initially, we recommended RN-119 for all applications under 5HP. However, field experience showed that pumps operating near voltage limits draw higher currents. Now we recommend 30% derating: RN-119 for loads up to 12A, RN-102 for anything higher.

2. Environmental Protection Matters

Monsoon humidity and dust require proper enclosure ratings. We now mandate IP65 minimum for all outdoor installations, which increased our success rate from 91% to 98.7%.

3. Farmer Education Drives Adoption

Technical presentations in local languages dramatically improved acceptance. Our Punjab deployments increased 340% after conducting village-level workshops in Punjabi.

Applicability Beyond Agriculture

The same protection principles apply across industries:

• Small Manufacturing: CNC machines, compressors, welding equipment
• Commercial Buildings: HVAC systems, elevators, fire pumps
• Residential Societies: Borewell pumps, common area equipment
• Healthcare: Critical equipment protection in rural clinics

Our recent deployment at a 50-bed hospital in Varanasi using RN-102 relays prevented 23 equipment failures over 8 months, saving ₹3.2 lakhs in replacement costs.

Why Novatek Electro for Agricultural Protection?

• ISO 9001:2015 Certified Quality: Rigorous manufacturing standards ensure consistent performance in harsh agricultural environments
• CE Certification: European safety compliance provides additional confidence for critical applications
• Made in India: Local manufacturing ensures faster delivery, competitive pricing, and easy spare parts availability
• 30+ Years Industry Experience: Three decades of understanding Indian power conditions and agricultural requirements
• Comprehensive After-Sales Support: Technical helpline, field service, and replacement warranty across India
