When the general manager of a leading hotel chain in Goa called me last summer, he was frustrated. Their electricity bills were spiraling out of control—not because of energy consumption, but due to crippling Maximum Demand (MD) charges. "Our MD penalties alone are costing us Rs.8 lakh annually," he said. "Can your load management systems really help?"

Six months later, after deploying our OM-310 demand controllers across their properties, those MD charges virtually disappeared. This is the reality for thousands of commercial buildings and industrial consumers across India—smart load management isn't just about energy conservation anymore, it's about survival in an era of rising electricity costs.

Why Load Management is Critical for Indian Industries

India's electricity tariff structure penalizes peak demand consumption heavily. For commercial and industrial consumers, MD charges can constitute 30-50% of total electricity bills. A typical 500kW industrial facility in Maharashtra pays approximately Rs.600-800 per kVA of maximum demand monthly, regardless of actual consumption.

Traditional manual load shedding is reactive and inefficient. By the time your facility manager notices high demand and starts switching off non-critical loads, the damage is done—the new MD has been recorded by the utility meter.

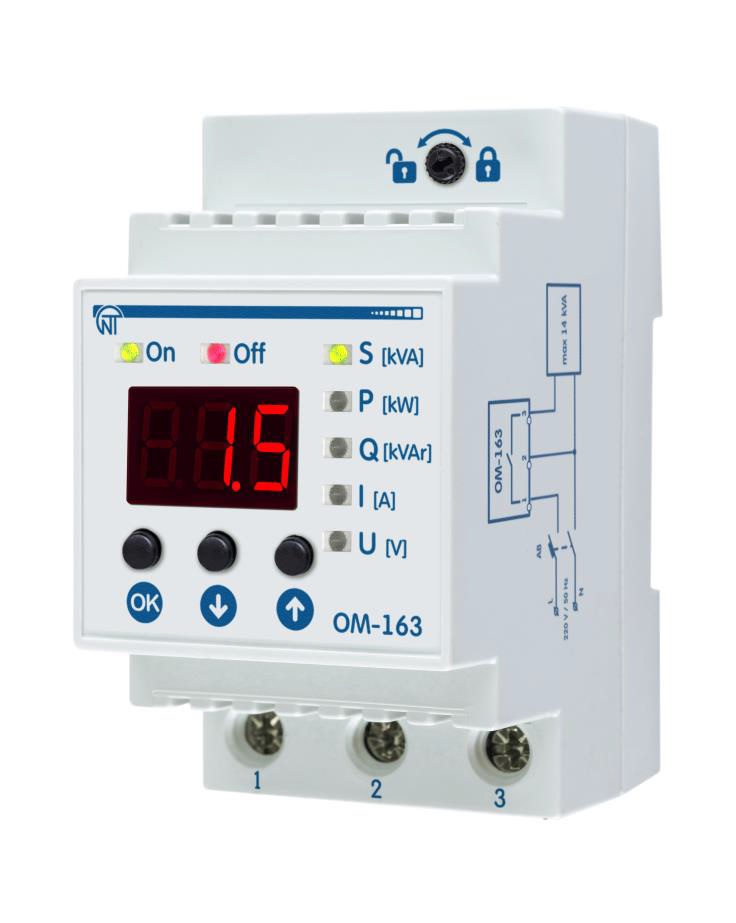

This is where intelligent overload relays and power controllers become game-changers. Modern devices like our OM-310, OM-163, and RMT-101 series provide:

• Real-time power monitoring with 1% accuracy
• Programmable demand control with predictive load shedding
• Automatic restoration of loads when demand reduces
• Complete protection against overcurrent and earth faults
• Energy consumption logging for billing optimization

Key Features to Look for in Load Management Systems

Essential Protection Functions

Any serious load management system must provide comprehensive electrical protection. Look for devices that combine demand control with overcurrent protection, earth fault protection, and voltage monitoring in a single unit.

Programmable Load Shedding

The system should allow you to configure multiple load priority levels. Critical loads (like emergency lighting, security systems) should never be shed, while comfort loads (HVAC, decorative lighting) can be temporarily disconnected during peak demand periods.

Communication Capabilities

Modern facilities require remote monitoring. Ensure your chosen device supports standard communication protocols for integration with existing SCADA or building management systems.

Model Comparison: OM-310 vs OM-163 vs RMT-101

Quick Selection Guide

Real-World Applications

Hotel Chain Case Study: OM-310 Implementation

The Goa hotel chain deployment involved installing OM-310 units at each property's main distribution panel. We configured three load priority levels:

• Priority 1 (Never shed): Emergency lighting, elevators, security systems, kitchen equipment
• Priority 2 (Shed after 85% demand threshold): Common area HVAC, decorative lighting, swimming pool equipment
• Priority 3 (Shed after 80% demand threshold): Guest room HVAC in unoccupied rooms, laundry equipment

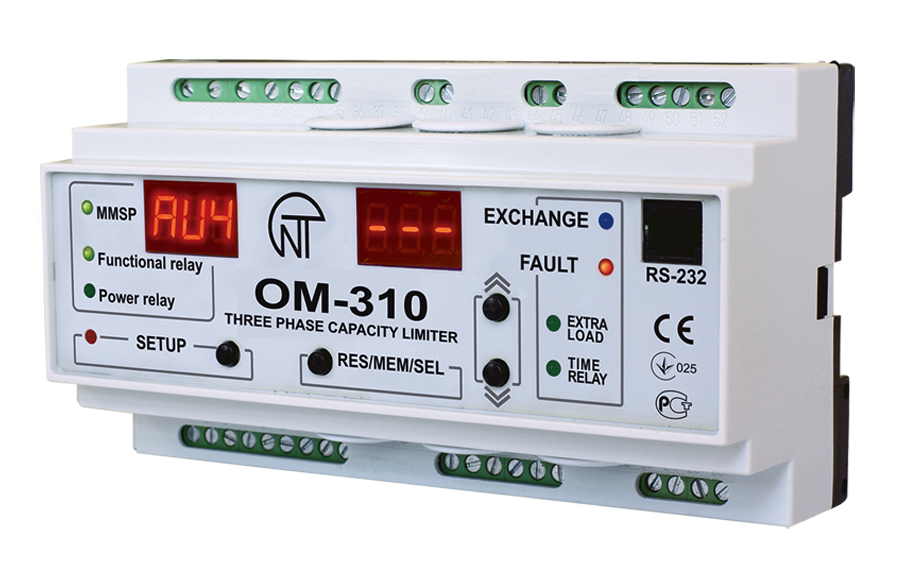

The OM-310's dual LED display continuously shows real-time power consumption and maximum demand. When approaching 80% of contracted demand, the system automatically sheds Priority 3 loads. If demand continues rising to 85%, Priority 2 loads are disconnected.

Manufacturing Plant: Combined OM-310 + RMT-101 Solution

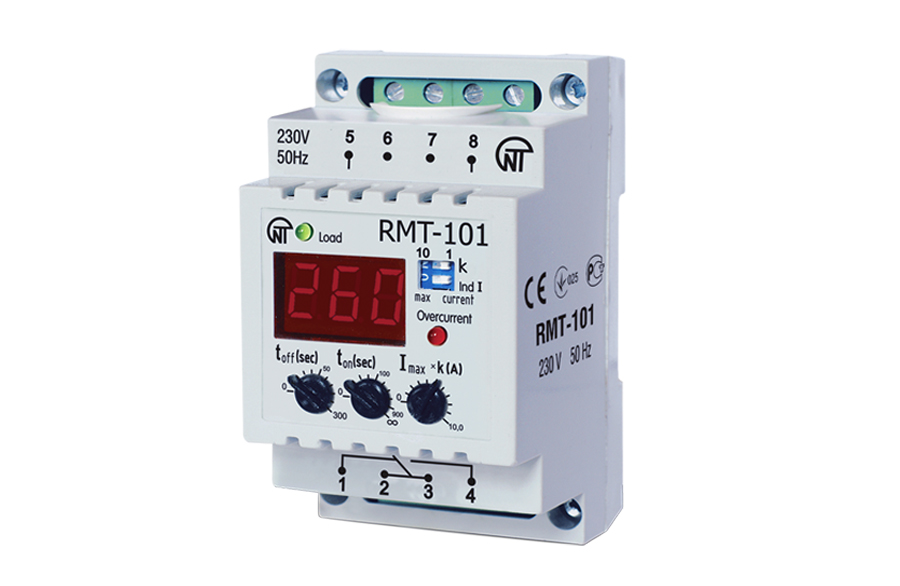

A textile manufacturing unit in Tamil Nadu uses OM-310 for overall demand management while individual RMT-101 units protect critical single-phase motors. This layered approach ensures both billing optimization and equipment protection.

Common Mistakes to Avoid

1. Incorrect Load Prioritization

Many engineers make the mistake of not properly analyzing load criticality. Always conduct a detailed load audit before configuring shed priorities. Fire safety systems, emergency lighting, and critical process equipment should never be part of load shedding schemes.

2. Improper Current Transformer Selection

Using undersized or oversized CTs affects measurement accuracy. For OM-310 applications, ensure CT secondary is 5A and the ratio matches your actual load current. A 400A load requires 400/5A CTs, not 200/5A or 600/5A.

3. Ignoring Hysteresis Settings

Set appropriate hysteresis bands to prevent chattering (rapid on-off cycling) of contactors. Typically, set restore thresholds 5-10% below shed thresholds.

Installation Best Practices

Panel Mounting and Clearances

Mount the relay in a clean, dry location with adequate ventilation. Maintain minimum 50mm clearance on all sides for heat dissipation. Use standard 35mm DIN rail mounting for easy installation and maintenance.

Current Transformer Connections

For three-phase installations with OM-310, connect CTs on all three phases. Ensure proper CT polarity—P1 toward source, P2 toward load. Never leave CT secondaries open-circuited when primary is energized.

Control Circuit Design

Use the relay's auxiliary contacts to control appropriate contactors for load shedding. Ensure contactor coil ratings match available auxiliary contact capacity (typically 8A for most Novatek models).

Why Choose Novatek Electro?

• ISO 9001:2015 & CE Certified: Internationally recognized quality management and European safety compliance ensure reliable performance
• 30+ Years of Experience: Three decades of designing protection devices specifically for Indian electrical conditions
• Made in India: Manufacturing facility in Delhi ensures quick delivery, local support, and competitive pricing
• Comprehensive After-Sales Support: Technical support, spare parts availability, and field service across major Indian cities
• Proven Track Record: Thousands of installations across hotels, hospitals, manufacturing plants, and commercial buildings

Where to Buy

All Novatek Electro products are available through our authorized distributors across India and directly through our online portal. We maintain stock in Delhi, Mumbai, Chennai, Bangalore, Pune, and Kolkata for quick delivery.

Prices mentioned are for FY 2026-27 (effective April 1, 2026) and exclude 18% GST. Bulk order discounts and project pricing available on request.
