From Manual Chaos to Automated Precision: How Multifunction Time Delay Relays Transform Factory Operations
Picture this: A bottling plant in Pune, running three production shifts, suddenly achieves what seemed impossible just months earlier. Their 12-conveyor system now operates with surgical precision, reducing manual intervention by 40%, and production line stoppages by nearly 60%. The secret? Strategic deployment of REV-201M multifunction time delay relays for sequential control automation.
After spending over two decades deploying protection and automation devices across Indian manufacturing facilities—from Chennai's automotive hubs to Gujarat's textile mills—I've witnessed firsthand how the right time delay relay can transform chaotic manual operations into seamlessly orchestrated automated sequences.
The Factory Automation Challenge: Beyond Basic Protection
Modern Indian manufacturing faces a unique set of challenges that standard protection devices simply cannot address. The problem isn't just about protecting equipment—it's about creating intelligent sequences that optimize production flow while minimizing human error.
In factory automation, timing isn't just important—it's everything. A 2-second delay in conveyor sequencing can create bottlenecks affecting entire production lines. A mistimed motor start sequence can damage expensive equipment. Manual control of complex sequences leads to inconsistencies that cost manufacturers lakhs in lost productivity.
Why Standard Time Relays Fall Short
Traditional mechanical time relays offer limited functionality and poor repeatability. They're fine for basic on/off operations but completely inadequate for sophisticated factory automation requiring:
- Multiple timing functions with microsecond precision
- Sequential control with external input capability
- Programmable logic for different production modes
- Digital displays for real-time monitoring
- Robust performance in harsh industrial environments
Multifunction Time Delay Relays: The Factory Automation Game-Changer
Our REV-120, REV-114, and REV-201M series represent a quantum leap in factory automation control. These microprocessor-based devices provide the intelligence and reliability that modern manufacturing demands.
| Model | Voltage Rating | Current Rating | Time Range | Operation Modes | Price (ex-GST) |
|---|---|---|---|---|---|

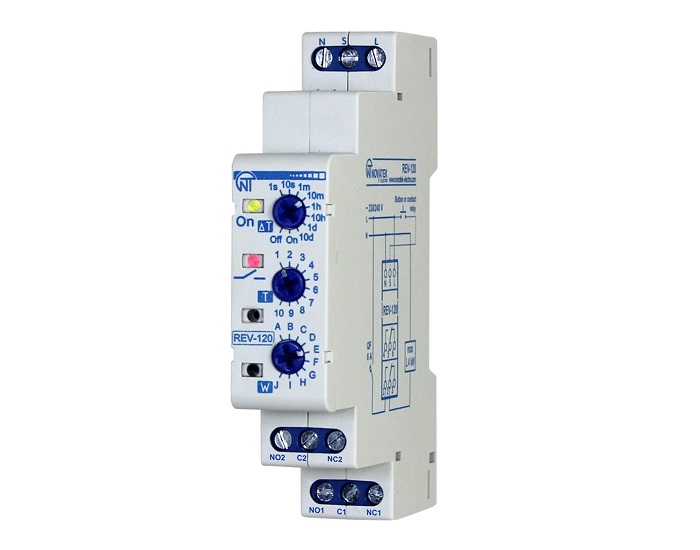

| REV-120 | 220-240V AC | 6A | 0.1 sec to 10 days | 10 modes | ₹1,900 |

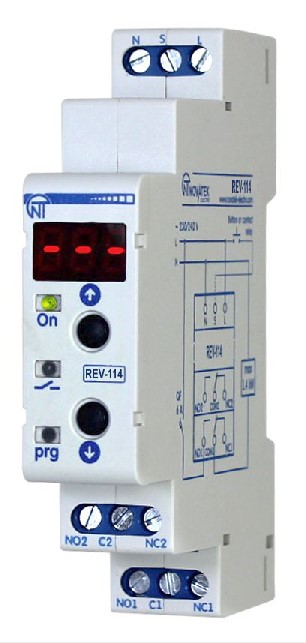

| REV-114 | 220-240V AC | 6A | 0.1 sec to 10 days | 17 modes | ₹2,050 |

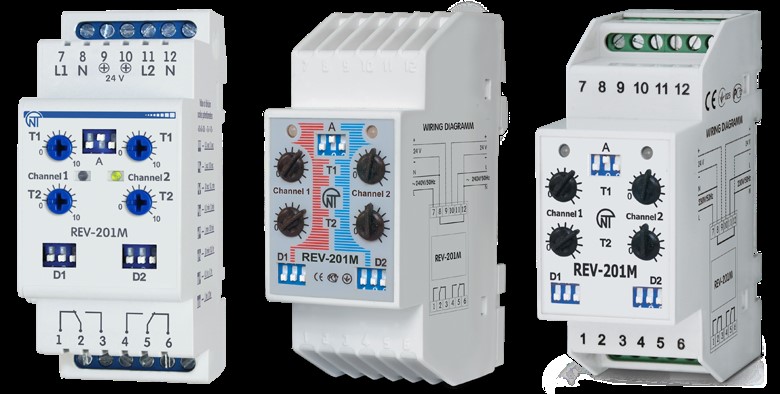

| REV-201M | 240V AC / 24V DC | 6A | 0.1 sec to 999 hours | 7 modes, 2 channels | ₹2,833 |
Real-World Applications: Engineering Solutions That Work
1. Conveyor Sequential Control
At that Pune bottling plant, REV-201M units control the startup sequence of 12 conveyors feeding into the main production line. The two-channel capability allows independent control of upstream and downstream conveyors, with programmable delays preventing backups and ensuring smooth product flow.
Technical Implementation: Channel 1 controls conveyors 1-6 with 3-second sequential delays, while Channel 2 manages conveyors 7-12 with 2-second intervals. The star-delta operation mode handles the soft-start requirements of larger conveyor motors.
2. Motor Star-Delta Starting
A textile mill in Coimbatore uses REV-114 relays for precise motor starting sequences. The 17 operation modes provide flexibility for different motor sizes and starting requirements, while the digital display allows operators to monitor timing parameters in real-time.
Engineering Advantage: The REV-114's potential-free SPDT contacts (2NO + 2NC) provide galvanic isolation, essential in high-noise textile environments where electromagnetic interference can cause false triggering.
3. HVAC Sequential Control
A pharmaceutical facility in Hyderabad employs REV-120 units for HVAC system sequencing, ensuring proper airflow patterns critical for maintaining cleanroom standards. The on-delay and off-delay functions prevent simultaneous startup of multiple air handling units, reducing electrical demand charges.
4. Process Line Interlocking
In a chemical processing plant near Mumbai, REV-201M relays create safety interlocks between process stages. The dual-channel design allows simultaneous monitoring of two critical parameters while maintaining independent control outputs.
5. Irrigation System Automation
A food processing facility in Punjab uses REV-114 relays for automated irrigation timing of their raw material supply farms. The extended time range (up to 10 days) and cyclic timer function eliminate manual intervention while ensuring optimal water usage.
6. Material Handling Sequences
An automotive parts manufacturer in Chennai implements REV-120 relays for robotic material handling sequences. The pulse timer functions coordinate robot movements with conveyor systems, ensuring precise part placement and minimizing cycle times.
Quick Selection Guide
| Application | Recommended Model | Key Features | Price (ex-GST) |
|---|---|---|---|
| Basic conveyor control | REV-120 | 10 operation modes, cost-effective | ₹1,900 |
| Complex automation | REV-114 | 17 modes, external input, display | ₹2,050 |
| Dual-channel control | REV-201M | 2 channels, AC/DC operation | ₹2,833 |
| Motor starting | REV-114/201M | Star-delta mode, precise timing | ₹2,050/₹2,833 |
IS/IEC Standards Compliance
All REV series relays comply with IS 13947 (Indian Standard for Low Voltage Switchgear) and IEC 61810 (Electromechanical Elementary Relays) standards. This compliance ensures:
- Consistent performance across varying environmental conditions
- Compatibility with Indian electrical infrastructure (220-240V AC, 50Hz)
- Safety requirements for industrial installations
- Electromagnetic compatibility (EMC) standards for noise immunity
Cost-Benefit Analysis for Manufacturing
Based on our deployment experience across 500+ manufacturing facilities, the ROI typically breaks even within 6-8 months:
- Labor Cost Reduction: 30-40% reduction in manual intervention
- Equipment Protection: Prevents costly motor damage from improper sequencing
- Energy Savings: Optimized startup sequences reduce demand charges by 15-20%
- Production Efficiency: Consistent timing improves throughput by 10-25%
- Maintenance Reduction: Proper sequencing extends equipment life by 20-30%
Ready to Automate Your Factory Sequences?
Join 500+ manufacturers who trust Novatek Electro's time delay relays for critical automation applications. Our engineering team provides free consultation for optimal relay selection and implementation guidance.
Contact us today: +91-7840054744 or sales@novatek-electro.in
Why Novatek Electro for Factory Automation?
- ISO 9001:2015 Certified: Quality management systems ensure consistent product performance and reliability
- CE Marked Products: European conformity standards guarantee safety and electromagnetic compatibility
- Made in India: Local manufacturing ensures quick delivery, competitive pricing, and easy service access
- 30+ Years Experience: Three decades of engineering expertise in Indian industrial applications
- Comprehensive Support: From pre-sales consultation to after-sales service, our technical team supports your automation journey
- Proven Track Record: Successfully deployed in 2000+ installations across automotive, textile, pharma, and food processing industries
Frequently Asked Questions
Transform Your Factory Operations Today
The difference between chaotic manual operations and seamlessly automated sequences often comes down to choosing the right time delay relay. With proven success in over 500 manufacturing facilities across India, our REV series offers the reliability and sophistication your factory automation demands.
Ready to achieve that 40% reduction in manual intervention? Our engineering team is standing by to help you select the optimal configuration for your specific applications.
