SCADA-Integrated Motor Protection: How Gujarat Chemical Plant Saved Rs.50+ Lakhs with UBZ-302 Relays

3:47 AM, Vadodara Chemical Complex: The shift supervisor's phone rings. Another unplanned shutdown. This time, it's Reactor Unit-3's agitator motor — seized due to bearing failure. No early warning, no graceful shutdown. Just a sudden trip that brings the entire batch process to a halt.

For Gujarat Petrochemicals Ltd. (name changed), this scenario was repeating 15-20 times annually across their 40+ motor-driven equipment. Each incident cost between Rs.2-5 lakhs in lost production, emergency repairs, and batch material waste. The annual damage? Over Rs.50 lakhs in preventable downtime.

The root cause wasn't motor quality — it was the absence of intelligent motor protection integrated with their Modbus RTU SCADA system. Traditional thermal overloads and contactors couldn't provide the granular monitoring and predictive alerts needed for critical process equipment.

The Challenge: Blind Spots in Motor Monitoring

Chemical process industries face unique motor protection challenges:

Thermal cycling: Reactor heating/cooling cycles stress motor windings
Corrosive environments: Chemical vapors accelerate insulation degradation
Variable loads: Mixing and conveying applications create fluctuating current patterns
Critical uptime: Motor failures can contaminate entire batches worth crores

Traditional protection methods failed because they operated in isolation. Plant operators had no visibility into motor health parameters, no trending data, and no early warning system integrated with their central SCADA.

The Solution: UBZ-302 and UBZ-304 SCADA-Integrated Motor Protection

Novatek Electro's UBZ-302 and UBZ-304 motor protection relays transformed this chemical plant's approach to motor monitoring. These microprocessor-based devices provide comprehensive protection with built-in Modbus RTU communication.

UBZ-302: Built-in CT Motor Protection

The UBZ-302 features integrated current transformers for motors up to 63A, eliminating external CT wiring and reducing installation complexity.

Parameter	Specification
Motor Power Range	2.5 – 315 kW (4 – 500 HP)
Operating Voltage	320 – 480 V AC
Rated Current	5A to 630A (programmable)
Built-in CT	Up to 63A motors
Communication	Modbus RTU
Protection Functions	15+ including phase loss, overload, underload, stall
Price (Ex-GST)	Rs.15,742

Buy UBZ-302 UBZ-304 Motor Protection Relay

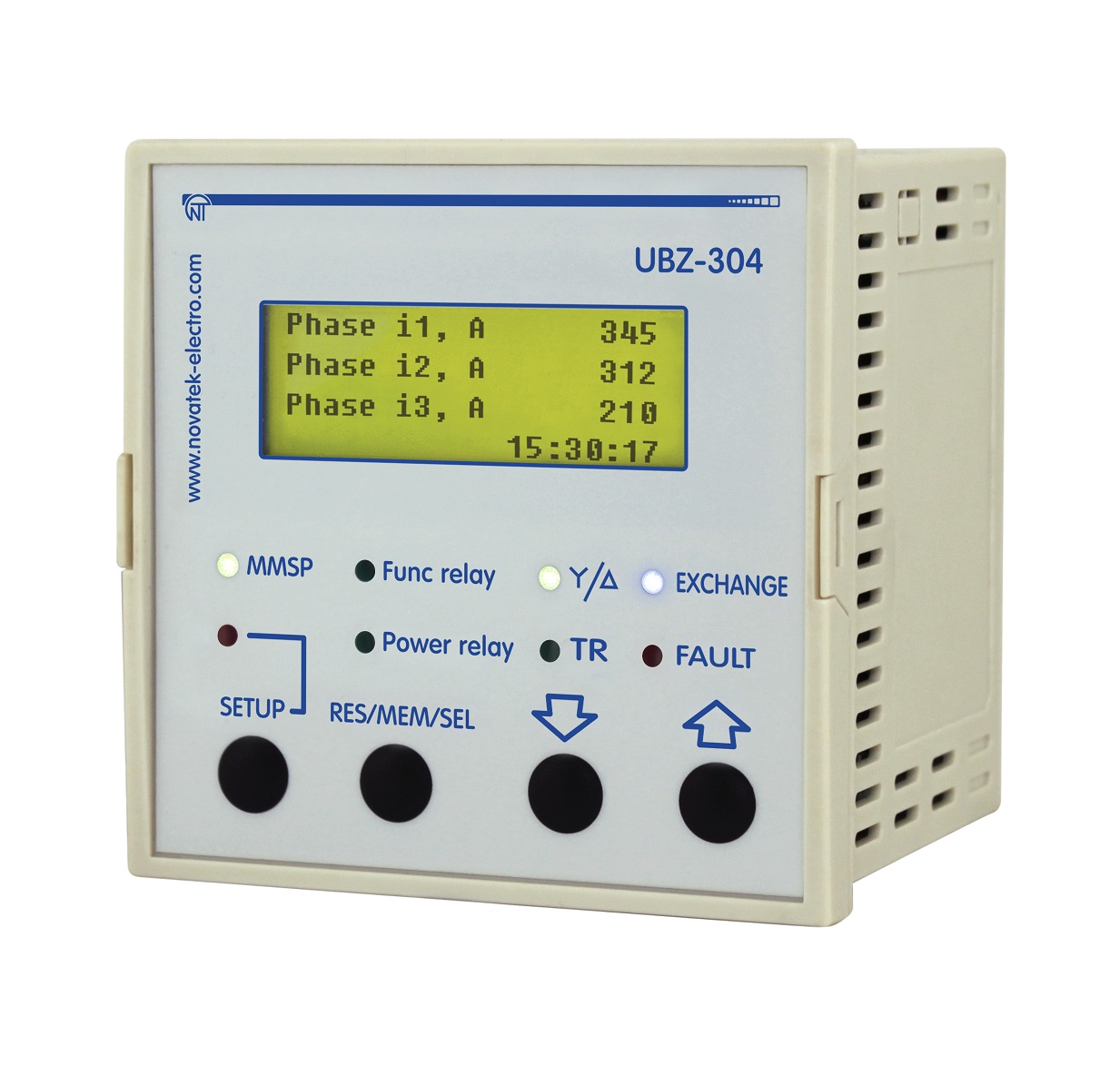

UBZ-304: Numeric Display Motor Protection

The UBZ-304 provides advanced numeric display and is ideal for larger motors requiring external CTs.

Parameter	Specification
Motor Power Range	2.5 – 315 kW (4 – 500 HP)
Operating Voltage	320 – 480 V AC
Rated Current	5A to 630A (programmable)
Display	Numeric LCD with parameter readouts
Communication	Modbus RTU
Output	SPDT (1NO + 1NC)
Price (Ex-GST)	Rs.10,550

Buy UBZ-304

Quick Selection Guide

Application	Recommended Model	Key Feature	Price (Ex-GST)
Chemical Reactors (<63A)	UBZ-302	Built-in CTs	Rs.15,742
Large Mixing Tanks (>63A)	UBZ-304	Numeric Display	Rs.10,550
Conveyor Drives	UBZ-302	Integrated Protection	Rs.15,742
Compressor Drives	UBZ-304	Parameter Monitoring	Rs.10,550

Real-World Applications: Gujarat Case Study

Application 1: Chemical Reactor Agitators

Challenge: 12 reactor agitators (15kW each) experiencing random failures due to product viscosity changes.

Solution: UBZ-302 relays with underload protection detected when reactors weren't mixing properly, preventing motor overheating and batch contamination.

Result: Zero unplanned agitator failures in 18 months, saving Rs.18 lakhs in batch losses.

Application 2: Solvent Recovery Compressors

Challenge: 6 compressor motors (45kW each) failing due to blocked suction lines causing motor overload.

Solution: UBZ-304 relays with real-time current monitoring integrated into SCADA. Operators receive alerts when current exceeds 110% of nominal.

Result: 4 potential failures prevented through predictive maintenance, saving Rs.12 lakhs in emergency repairs.

Application 3: Raw Material Conveyor System

Challenge: 18 conveyor motors (7.5kW each) experiencing phase loss issues during monsoon season.

Solution: UBZ-302 relays with phase sequence protection and SCADA integration for remote monitoring.

Result: Eliminated all phase-loss related failures, preventing Rs.8 lakhs in production delays.

Application 4: Cooling Water Circulation Pumps

Challenge: 8 pump motors (22kW each) running dry due to low water levels, causing impeller damage.

Solution: UBZ-304 relays monitoring motor current patterns to detect dry-run conditions.

Result: 100% detection rate for dry-run conditions, saving Rs.15 lakhs in pump replacement costs.

ROI Calculation: Real Numbers

Investment: 40 units × Rs.13,146 (average) = Rs.5.26 lakhs

Annual Savings:

Prevented downtime: Rs.35 lakhs
Reduced maintenance: Rs.12 lakhs
Energy optimization: Rs.6 lakhs
Total Annual Benefit: Rs.53 lakhs

Payback Period: 3.6 months

3-Year ROI: 2,915%

Technical Advantages: Engineering Perspective

Modbus RTU Communication: Seamless integration with existing SCADA systems
15+ Protection Functions: Overload, underload, phase loss, phase reversal, stall protection
Programmable Parameters: Customizable trip curves for specific applications
Real-time Monitoring: Continuous voltage, current, and power parameter tracking
Event Logging: Fault history for root cause analysis
Wide Operating Range: 320-480V AC, suitable for Indian industrial voltages

Why Novatek Electro for Motor Protection?

ISO 9001:2015 Certified: Quality management systems ensuring consistent product reliability
CE Compliance: European safety standards for global acceptability
Made in India: Local manufacturing ensuring faster delivery and cost-effectiveness
30+ Years Experience: Three decades of electrical protection expertise
Comprehensive Support: Technical assistance, training, and after-sales service across India
Application Engineering: Customized solutions for specific industry requirements

Frequently Asked Questions

Q: What's the difference between UBZ-302 and UBZ-304 for chemical plant applications?

A: UBZ-302 has built-in CTs suitable for motors up to 63A and costs Rs.15,742. UBZ-304 requires external CTs but offers numeric display and costs Rs.10,550. For smaller chemical process motors, UBZ-302 reduces installation complexity.

Q: Can these relays integrate with Schneider Electric or Siemens SCADA systems?

A: Yes, both UBZ-302 and UBZ-304 support standard Modbus RTU communication protocol, compatible with all major SCADA systems including Schneider Wonderware, Siemens WinCC, and Honeywell Experion.

Q: How do I size the relay for a 37kW reactor agitator motor?

A: For 37kW at 415V, full load current is approximately 65A. Use UBZ-304 with external 100/5A CTs. Program the relay for 65A nominal current with 1.1x pickup for overload protection.

Q: What protection functions are most critical for chemical process motors?

A: Phase loss (corrosive environment issues), overload (viscosity changes), underload (mixing problems), and stall protection (bearing failures) are essential for chemical applications.

Q: Can these relays detect motor bearing degradation before failure?

A: Yes, through current signature analysis. Gradual increase in running current often indicates bearing wear. SCADA trending helps identify this degradation pattern 2-4 weeks before failure.

Q: What's the typical response time for overcurrent protection?

A: Both relays provide definite time or inverse time characteristics. For chemical applications, we recommend 5-10 second delays for overload and instantaneous (100ms) for short circuit protection.

Q: Are these relays suitable for hazardous area installations?

A: The relays themselves are for safe area installation in control panels. For hazardous areas, install in purged enclosures or use barrier interfaces with the communication signals.

Q: How many motors can be connected to one Modbus network?

A: Up to 247 devices per Modbus RTU network. Each relay gets a unique address (1-247). For large plants, use multiple networks or Modbus TCP gateways.

Q: What's the power consumption of these protection relays?

A: Both relays consume less than 8VA from the control supply. This minimal consumption makes them suitable for UPS-backed critical systems.

Q: Can I retrofit these relays in existing motor starters?

A: Yes, both relays fit standard 35mm DIN rails. UBZ-302 replaces thermal overloads directly. UBZ-304 requires external CT installation but can upgrade any existing starter.

Q: What maintenance is required for these digital protection relays?

A: Minimal maintenance required. Annual calibration check, relay contact inspection, and firmware updates if available. No thermal element replacement like conventional overloads.

Q: How do I configure trip curves for variable speed drives?

A: For VFD applications, program the relay for the maximum motor current and adjust trip curves based on VFD current limiting settings. Coordinate with VFD's built-in protection.

Q: What technical support is available for system integration?

A: Novatek Electro provides application engineering support, Modbus register mapping, SCADA integration assistance, and on-site commissioning support across India.

Q: Can these relays operate during voltage fluctuations common in Indian industrial areas?

A: Yes, both relays operate reliably from 320-480V AC, handling ±23% voltage variations typical in Indian industrial power systems without affecting protection accuracy.

Q: What's the typical lifespan of these microprocessor-based relays?

A: With proper installation and environmental conditions, expect 15-20 years operational life. The digital design eliminates mechanical wear issues of conventional thermal overloads.
