The emergency call came in at 2:47 AM on a sweltering June night in Chennai. The fourth 15 HP submersible pump at the municipal water treatment plant had burned out in just two months. With water demand at its peak and repair costs mounting to ₹8.5 lakhs, the chief engineer knew they needed more than just pump replacements—they needed intelligent motor protection.

This scenario isn't unique to Chennai. Across India's water infrastructure, inadequate motor protection costs municipal authorities and private water companies millions annually. From Pune's sewage treatment plants to Bangalore's apartment complexes, pump failures due to dry-running, voltage fluctuations, and phase imbalances plague the industry.

Why Motor Protection Relays Are Critical for Water Management

India's water pumping infrastructure operates under harsh conditions: erratic power supply, seasonal water table fluctuations, and 24/7 duty cycles. Without proper protection, motors face:

• Dry-run damage: Submersible pumps running without water overheat within minutes
• Voltage variations: Grid fluctuations between 320V-480V stress motor windings
• Phase imbalance: Uneven loading causes excessive heating
• Overload conditions: Clogged impellers or blocked pipelines
• Single phasing: Loss of one phase destroys three-phase motors instantly

The Chennai municipal authority's solution? Installing Novatek Electro's UBZ-301 motor protection relays with advanced dry-run detection. Result: Zero pump failures in the subsequent 18 months of operation.

Essential Features to Look For

Not all motor protection relays are created equal. For water management applications, prioritize these features:

Core Protection Functions

• Dry-run/Under-load Protection: Critical for submersible and booster pumps
• Phase Sequence Monitoring: Prevents reverse rotation damage
• Voltage Range Protection: Handles India's unstable grid conditions
• Current Imbalance Detection: Identifies winding deterioration early
• Restart Delay: Prevents rapid cycling damage

Advanced Monitoring

• Real-time Current/Voltage Display: Enables proactive maintenance
• Event Logging: Tracks fault history for analysis
• Remote Start/Stop: Essential for automated systems
• Programmable Settings: Adapts to different pump specifications

Model Comparison: UBZ-301 vs UBZ-115

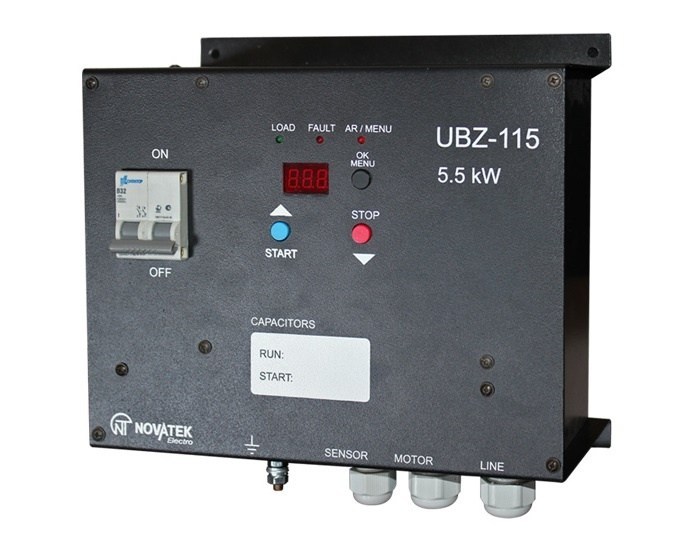

The UBZ-301 dominates large-scale installations—municipal pumping stations, industrial water treatment, and high-rise building systems. Meanwhile, the UBZ-115 excels in residential bore wells, small booster pumps, and single-phase sewage ejector pumps.

Application-Based Selection Guide

Common Installation Mistakes to Avoid

After 30+ years of field experience across India, we've identified these critical errors:

1. Incorrect CT Sizing

Using 100/5A CTs for a 25A motor creates sensitivity issues. Always size CTs to 1.5-2x motor full load current.

2. Improper CBCT Installation

For UBZ-301 dry-run protection, the Core Balance Current Transformer must encircle all three phases plus neutral—missing neutral defeats earth fault detection.

3. Wrong Voltage Settings

Don't set voltage limits too tight for Indian grid conditions. Allow ±15% voltage variation (352V-478V for 415V systems).

4. Inadequate Wiring Gauge

Control circuit wiring should be minimum 1.5mm² for reliability. Use numbered ferrules for easy maintenance.

5. Skipping Restart Delay

Set minimum 30-second restart delay for submersible pumps to prevent thermal shock.

Installation Best Practices

Pre-Installation Checklist

• Verify motor nameplate data (HP, FLA, voltage)
• Select appropriate CT ratios
• Plan control panel layout with adequate clearances
• Ensure proper earthing for all metal enclosures

Wiring Guidelines

• Use separate conduits for power and control circuits
• Maintain 200mm minimum separation from high-current busbars
• Label all terminals clearly with permanent markers
• Test all connections with multimeter before energizing

Commissioning Steps

1. Set motor parameters (FLA, voltage range)
2. Configure protection settings (overload, undervoltage)
3. Test all protection functions individually
4. Simulate fault conditions safely
5. Document all settings for future reference

Why Choose Novatek Electro?

• ISO 9001:2015 Certified: Proven quality management systems ensure consistent product reliability
• CE Marked: International compliance for global quality standards
• Made in India: Supporting indigenous manufacturing with local service support
• 30+ Years Experience: Three decades of power protection expertise across diverse Indian conditions
• Comprehensive Support: Pre-sales consultation, installation guidance, and after-sales service nationwide
• Competitive Pricing: Direct manufacturer pricing without distributor markups

Pricing and Availability

Current pricing (effective April 2026) for Novatek Electro motor protection relays:

Frequently Asked Questions

Ready to Protect Your Pumping Investment?

Don't wait for costly pump failures like the Chennai municipal authority experienced. Invest in proven motor protection technology that pays for itself in prevented downtime and equipment damage.
