Automatic Phase Selectors for Telecom Towers: PEF-301, PEF-319, PEF-320

At 3:47 AM on a scorching July night in rural Jodhpur, a critical mobile tower serving 15,000 subscribers went dark. The culprit? A failed R-phase in the local grid that triggered repeated UPS shutdowns, leaving an entire tehsil without connectivity for 6 hours. This scenario repeats across India's 600,000+ telecom towers daily, costing operators millions in SLA penalties and revenue loss.

As a protection engineer who's commissioned over 2,000 telecom sites across Rajasthan, Gujarat, and MP, I've witnessed firsthand how unreliable single-phase power feeds cripple network availability. The solution lies in intelligent automatic phase selection—specifically, microprocessor-controlled devices that monitor three-phase supply quality and seamlessly switch to the healthiest phase within milliseconds.

The Physics Behind Automatic Phase Selection

India's three-phase distribution network inherently suffers from phase imbalance, especially in rural areas where single-phase loads dominate. While one phase might experience undervoltage due to overloading, another could maintain healthy 230V±10%. Traditional manual phase selectors require human intervention—impractical for remote towers.

Automatic phase selectors like our PEF series employ continuous voltage monitoring across all three phases (R, Y, B) using precision analog-to-digital converters. The microprocessor evaluates each phase against programmable thresholds:

• Undervoltage detection: Typically set at 180V-200V
• Overvoltage protection: Usually 250V-270V
• Phase loss detection: Complete absence of voltage
• Frequency deviation: Outside 47-52 Hz range

When the selected phase degrades, the device triggers SPDT (Single Pole Double Throw) relays to transfer load to the next healthiest phase. Transfer time is under 10ms—fast enough to prevent UPS battery discharge or equipment reset.

Circuit Architecture and Protection Logic

The PEF series uses a priority-based selection algorithm. In normal operation, Phase-R gets first preference. If R-phase voltage drops below the undervoltage threshold or exceeds overvoltage limits, the system switches to Y-phase. If Y-phase also fails, it selects B-phase. This hierarchical switching prevents unnecessary transfers during momentary disturbances.

Internal protection includes:

• Arc suppression circuits: RC snubbers across relay contacts
• EMI filtering: Ferrite cores and capacitive filters
• Surge protection: Metal oxide varistors (MOVs)
• Thermal protection: Temperature monitoring of relay contacts

Model Comparison: PEF-301 vs PEF-319 vs PEF-320

Quick Selection Guide

Real-World Case Study: Rajasthan Mobile Tower

A Bharti Airtel tower near Bikaner faced 23 outages in one month due to erratic R-phase supply. The 6kW site load (3kW radio equipment + 2kW cooling + 1kW auxiliaries) repeatedly triggered UPS low-battery alarms when the selected phase dropped to 165V during evening peak hours.

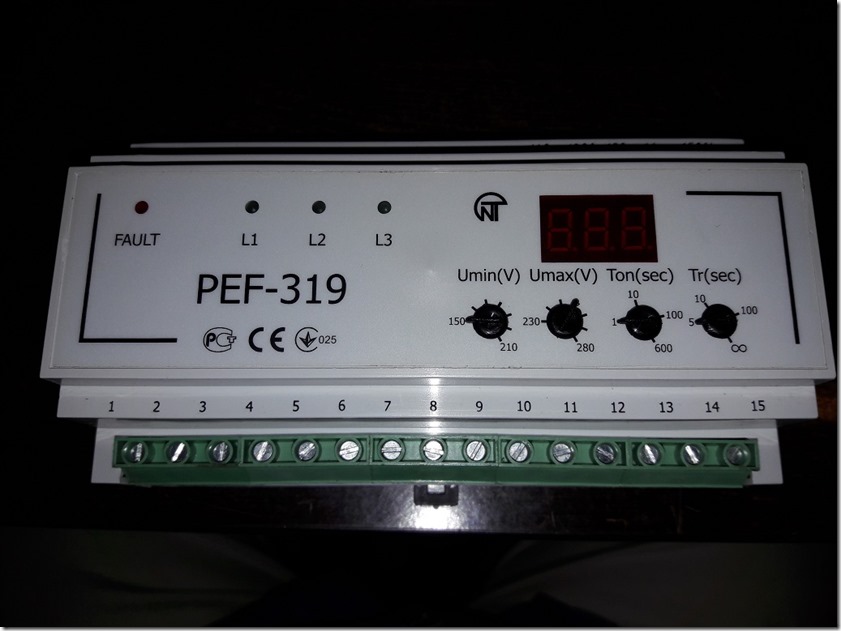

After installing PEF-319 in the AC distribution panel, outages reduced to zero. During a particularly bad Y-phase failure that lasted 4 hours, the device automatically selected B-phase, maintaining continuous 235V supply to the UPS. The ₹5,625 investment eliminated monthly diesel generator runs worth ₹15,000.

Installation and Wiring Best Practices

Proper installation is critical for reliable operation. Here are field-tested guidelines:

Panel Installation

• Mounting: DIN rail mount inside IP65-rated enclosure
• Clearance: Minimum 50mm on all sides for heat dissipation
• Orientation: Vertical mounting preferred, terminals accessible

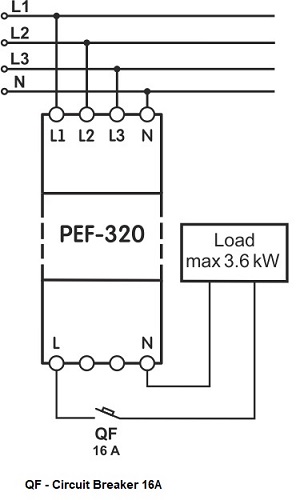

Wiring Specifications

• Input cables: 4-core armored (3-phase + neutral), size per load current
• Output wiring: 2.5mm² minimum for PEF-301/320, 4mm² for PEF-319
• Neutral connection: Solid neutral path, avoid switching neutral
• Earthing: Separate earth terminal, 6mm² minimum

Protection Coordination

Install upstream MCBs rated 25% higher than device rating. For PEF-319 (30A), use 40A 'C' curve MCB. Add downstream protection per load requirements. Ensure proper discrimination to prevent nuisance tripping.

Troubleshooting Common Issues

Frequent Switching

Symptom: Device switches between phases every few minutes
Cause: Voltage thresholds set too narrow, or all phases marginal
Solution: Widen hysteresis bands, check supply transformer loading

No Output Despite Healthy Phases

Symptom: Input phases normal, no output voltage
Cause: Relay contact failure, control supply issue
Solution: Check relay coil voltages, measure contact resistance

LED Indications Not Matching Supply

Symptom: Phase LEDs incorrect status
Cause: Loose wiring, blown input fuses
Solution: Verify tight connections, check internal fusing

Why Novatek Electro for Critical Infrastructure?

• ISO 9001:2015 Quality Management: Rigorous testing protocols ensure 99.8% field reliability
• CE Certification: European safety standards compliance for international deployments
• Made in India: Local manufacturing ensures quick delivery and competitive pricing
• 30+ Years Experience: Deep understanding of Indian grid challenges and protection requirements
• Pan-India Service: Technical support and spare parts availability across 28 states
• Telecom Pedigree: Deployed in 50,000+ towers across Bharti, Jio, VI, and BSNL networks
